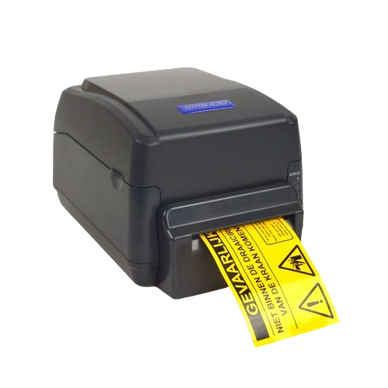

SMS-430 multifunctional label printer

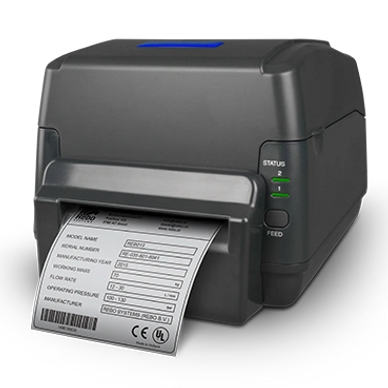

The SMS-430 is the multifunctional label printer for all your common industrial codes. With the professional NiceLabel software included, you can design all possible labels quickly and easily.

Think, for example, of labels that are necessary for the optimal functioning of your company and institution. Thanks to the standard integrated network connection, the printer can be connected and managed seamlessly via your internal network. There is also the possibility to connect the printer via Bluetooth or WiFi.

 From texts and safety instructions to warehouse or product labels with a database link, the SMS-430 label printer offers many possibilities! Also produce your own type plates, pipe markers, safety instructions and cable coding.

 The SMS-430 is the multifunctional label printer for all your industrial codes. With the professional NiceLabel software supplied, you can design countless labels quickly and easily with which you immediately create a safe and well-arranged workplace. Thanks to the standard integrated LAN connection, the system can be used and managed entirely via your company network.

 Are you looking for permanent or removable labels? Should the label be suitable for rough or smooth surfaces, or be resistant to high or low temperatures? With more than 40 different materials, there is the right label for every application. All this printed with our multi-functional label printer.

Printer type
Direct thermal & thermal transfer
Resolution
300 dpi
Print speed
Maximum 101.6 mm / s
Print length
Max. 1270mm
Print width
Max. 104mm
Dimensions
L 278mm x W 220mm x H 187mm
Weight
2.4kg
Connectivity

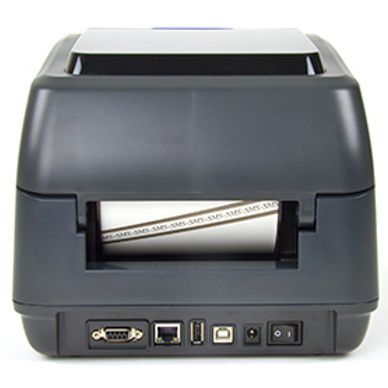

Standard: USB device, RS-232, Ethernet, USB host | Optional: Bluetooth, WiFi
Control
2x LED Lamp (Power / Ready) / 1x button (Feed)
Sensors
1x Spacing / 1x “Reflective” (movable) / 1x “Transmissive” / 1x “Print head open” / 1x “Print ribbon end”

Power supply

Input voltage
100-240V — 50-60HZ
Output
voltage DC Output: 24V, 3.75A

remaining

Relative temperature
5 ° C - 40 ° C
Relative humidity
0% - 90%, non-condensing
Storage temperature
-20 ° C - 60 ° C
Certification
CE, FCC, UL / cULus, CCC, RoHS, BSMI

Tape
Standard types of
Industrial Vinyl (E300) - Standard adhesive strength, ideal for indoor and outdoor use.
Premium vinyl (ST700) - High adhesive strength, for durable industrial labels for long-term indoor and outdoor use.
High-Tack (HT700) - Extremely high adhesive strength, for difficult surfaces such as dirt-resistant plastic, slightly greasy surfaces, tiles, wood etc.
Polyester (PT700) - High adhesive strength, for nameplates and other durable applications. For long-term industrial use.
High temp. tape (H250) - Extremely high adhesive strength, for direct application on substrates up to 250 ° C.
Cold Weather tape (CW200) - High adhesive strength, for direct application on substrates up to - 25 ° C.

Special types of
Removable tape (R300)  - Removable tape for temporary markings.
Reflective tape (RT500) - Reflective tape for indoor and outdoor use.
Fluorescent tape (FL500) - Fluorescent tape for very good visibility.
Photoluminescent tape (RG500) - Post-illuminating tape for indications that must remain visible in the event of a light failure.
Tags (T100) - Non-adhesive, tear-resistant tags. Available in continuous and punched material.
Wire-Wraps (WI100) - Self-laminating wrap labels where the print is protected against damage and fading.
Cable Tags (EC100)- High-quality cable ID tags with tie-wraps to attach, halogen-free and fire-retardant.
ResoLabels (RL100) - The alternative to resopal. Thickened labels of durable quality for machine and button indications.
VOID polyester (PV500)  - High adhesive strength, for sealing / protection: after the label has been removed, the text VOID remains. For long-term industrial indoor use.
Labels  - Sustainable industrial labels suitable for GHS labels and inspection labels. Available in various types of materials, colors, shapes and sizes.

Width
Max. 104mm

Ribbon Type:
Wax, Resin, Wax / Resin
