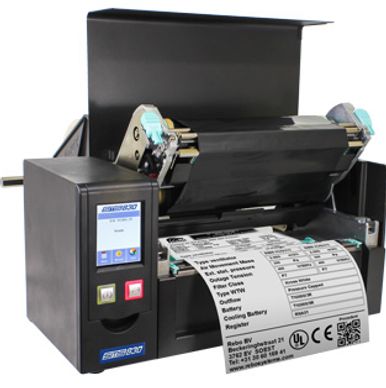

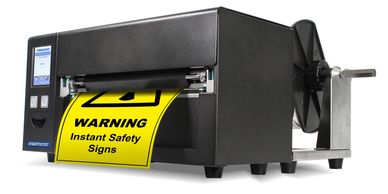

SMS-830 - The BIG SIGN PRINTER

  Designed to produce large, bold, long lasting heavy duty signs and labels. The SMS-830 is a  solidly engineered printer, built for heavy industrial environments and high workloads.

 The SMS-830 is the ideal solutions to 'on demand' sign and label requirements. Fast and  easy to use, the SMS-830 helps you to get important safety messages and identification  in place in minutes. The heavy duty print head, heavy duty cutter assembly and the large  range of materials mean the SMS-830 is long lasting and a major advantage when big  signs and labels are needed fast.

Complete with Microsoft® approved design software and an enormous library of industrial symbols and signs, the SMS-830 series has a large range of high visibility, high durability materials. Multiple color signs are easily created using our range of A4 and A5 die-cut pre-printed ‘signs on a roll’.

With an integrated ‘heavy duty’ cutter, the SMS-830 can deliver signs and labels up to 22 CM wide and over 11 Meters in length*. The SMS-830 is designed to be easy to access, so material changing is fast and trouble free.

Printer type
Direct thermal & Thermal transfer
Resolution
300DPI
Print speed
Max. 102mm/s (4inch/s)
Print length
Min. 25.4 mm (1inch) Max. 1,016 mm (40inch)
Print width
Max. 219.5mm (8.64inch)
Dimensions
L 221mm H 224mm W 431mm
Weight
11.7 kg
Memory
128 MB Flash (60 MB for user storage) ; 32 MB SDRAM
Connectivity
USB-A | USB B | RS-232 | Ethernet port
Operation interface
3.2” touch screen | 1 Power on/standby | 1 FEED / PAUSE / CANCEL | 1 Calibration
Sensors
Adjustable reflective sensor and transmissive sensor, central aligned

Media Type
Roll-feed / Die-cut / Continuous / Tags
Ribbon Type
Wax/Resin

Agency Approvals

 CE (EMC) | FCC Class B | CB | UL | cUL | CCC | UKCA

 Tape
Standard materials
Industrial Vinyl (E300) – Standard 3-5 year, perfect for most applications.
Premium Vinyl (ST700) – High quality 5-7 year, for higher durability.
High-Tack (HT700) – High tack adhesive, ideal for difficult surfaces like wood, concrete, oil and low friction plastics.
Polyester (PT700) – High tack adhesive, high temperature, low halide – ideal for machine plates and pipes.
High Temperature Tape (H250) – High tack adhesive and extra high temperature resistance.
Cold Weather Tape (CW200) – Good adhesion to extremely cold surfaces.

Special materials
RePlace Tape (RE300) – The perfect alternative for magnetic tape. Repositionable tapes that not only stick on metal but also surfaces like plastic, cardboard and wood. Ideal for logistics.
Removable Tape (R300) – Removable tape for temporary signs.
Reflective Tape (RT500) – Reflective tape for indoor and outdoor usage.
Fluorescent Tape (FL500) – Fluorescent tape with a very high visibility.
Photoluminescent Tape (RG500) – Glow-in-the-dark tape for signs that need to remain visible after a power cut.
Tags (T100) – Non-adhesive, untearable tags. Available in continuous and die-cut materials.
Die-cuts – Durable industrial die-cuts. Available in several qualities, colours, shapes en sizes.

Ribbon Type:
Wax, Resin, Wax/Resin
